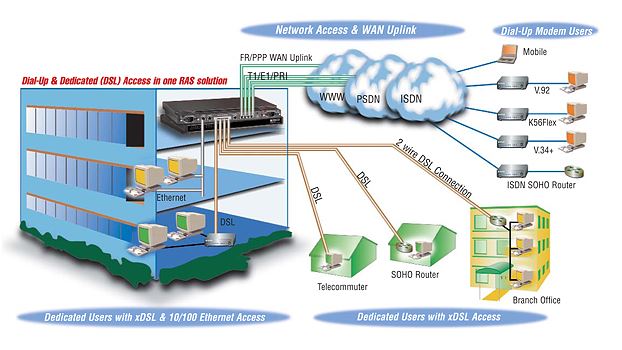

The Patton Electronics 3120 Remote Access Server gives users both Dial-Up and DSL Access in one RAS Solution. (Click on the image to enlarge)
The Patton DialFire 3120 Remote Access Server supports up to 120 digital ISDN or analog (V.110, V.92, V.90, K56Flex, V.34, etc.) modem connections in a single 1U high (1.75 in./4.45 cm) rack-mountable chassis. The Model 3120 is the highest density, lowest profile remote access server available anywhere. It has two 10/100-Mbps Ethernet ports for load sharing and traffic balancing.
Quad T1/E1 ports for 120 RAS or uplink services—Terminate any combination of 120 modems/ISDN connections, or expand into remote locations and use the 3120 as a complete PoP solution
Dual 10/100 Ethernet Ports—Flexible integration options for your high-performance network
PMC expansion card Network expansion options
SNMP/HTTP management—Embedded HTTP server provides complete configuration and control using your web browser
Removable dual-redundant power standard—Supports two AC, two DC, or a mix of AC and DC power supply modules (as below)
3120/120B/R-115 REMOTE/LAN ACCESS, 120 call, Redundant 115VAC PS
3120/120B/R-230 REMOTE/LAN ACCESS, 120 call, Redundant 230VAC PS
3120/120B/R-48 REMOTE/LAN ACCESS, 120 call, Redundant 48VDC PS
3120/30B/R-115 Remote/LAN Access Server 30 call, Redundant 115VAC PS
3120/30B/R-230 Remote/LAN Access Server 30 call, Redundant 230VAC PS
3120/60B/R-115 REMOTE/LAN ACCESS, 60 call, Redundant 115VAC PS
3120/60B/R-230 REMOTE/LAN ACCESS, 60 call, Redundant 230VAC PS
3120/96B/R-115 REMOTE/LAN ACCESS, 96 call, Redundant 115VAC PS
3120/96B/R-230 REMOTE/LAN ACCESS,96 call, Redundant 230VAC PS
3120/96B/R-48 96 PORT RAS, 96 call, Redundant 48VDC PS
Call us at 301-924-7400 for price and availablilty.
