▪ Extend telephone voice transmission up to 120km over fiber
▪ Network management via terminal, web or SNMP in FRM-220 chassis
▪ Supports telephone voice transmission
▪ Supports FXS to FXS hot line

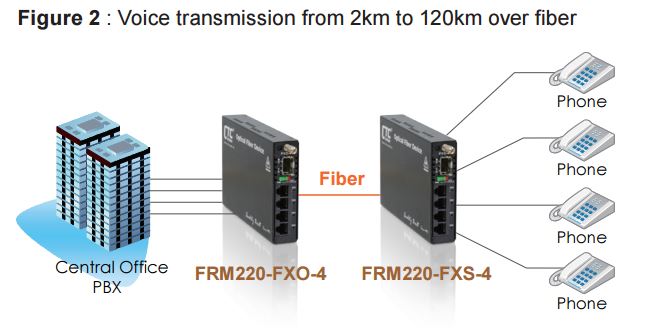

DAT/FRM-220-FXO/FXS-4 are 4 channel POTS (Plain Old Telephone System) over fiber converter/extender. The four POTS connection uses standard RJ-11C modular connectors for each copper pair connection. A pair of FRM-220-FXO/FXS-4 is required to implement an end to end system. FXO type unit connects to a telephone line (PSTN) or PBX station line and has ability to detect ringing voltages and to act as a telephone. FXS type unit is the reciprocal unit and has ability to act as PSTN and connects to a telephone device. Two FXS cards may be connected back-to-back to provide a private “hot line”.

When the FRM-220-FXO/FXS-4 cards are placed in the FRM-220 rack with SNMP management, in-band management allows configuring and viewing the card and remote converter’s status, type, version, fiber link status, on hook status and alarms. When placed in a single slot chassis and used standalone without management, the card may be configured by DIP switch.

DAT/FRM/220-FXO-4 4x FXO over Fiber
DAT/FRM/220-FXS-4 4x FXS over Fiber

Contact us for further information and pricing.
