T1 Over Fiber

Data Interfaces CTC T1 over fiber

The FIB1-T1 family of fiber converters allows extension of a single T1 RJ48c 100ohms port over multimode, single-mode or single strand fiber circuits. The standard interface for fiber optics is the SC connector. On special customer request ST and FC connectors can be provided. T1 interface can be framed or unframed. The fiber converter is totally transparent to the T1 signal. Applications include extension of smart-jacks over fiber, PBX interconnection or T1 transport.

FIB1-T1R-SC2F – T1 RJ45 100ohm to multi-mode 1310nm fiber optic media converter (T1 modem), 2Km

CTC_FIB1-T1R-SC2F

The FIB1-T1R-SC2F is a fiber media converter for G.703 T1 transmission/transport and features an RJ-48c connector for connection to 100 Ohm twisted pair wiring. FIB1-T1R-SC2F operates on multimode fiber up to 2Km (1.3mi) distance.

FIB1-T1R-ST2F – T1 RJ45 100ohm to multi-mode 1310nm fiber optic media converter (T1 modem), 2Km, ST connector

CTC_FIB1-T1R-ST2F

The FIB1-T1R-ST2F is a fiber media converter for G.703 T1 transmission/transport and features an RJ-48c connector for connection to 100 Ohm twisted pair wiring. FIB1-T1R-ST2F operates on multimode fiber up to 2Km (1.3mi) distance.

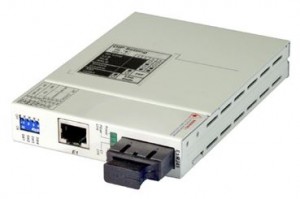

FIB1-T1R-SC15F – T1 RJ45 100ohm to single-mode 1310nm fiber optic media converter (T1 modem), 15Km

CTC_FIB1-T1R-SC15F

The FIB1-T1R-SC15F is a fiber media converter for G.703 T1 transmission/transport and features an RJ-48c connector for connection to 100 Ohm twisted pair wiring. FIB1-T1R-SC15F operates on single-mode fiber up to 15Km (9.6mi) distance.

The FIB1-T1R-ST15F is a fiber media converter for G.703 T1 transmission/transport and features an RJ-48c connector for connection to 100 Ohm twisted pair wiring. FIB1-T1R-ST15F operates on single-mode fiber up to 15Km (9.6mi) distance with ST duplex conn.

FIB1-T1R-SC20AF – T1 RJ45 100ohm to singlemode single strand 1310/1550nm fiber optic media converter (T1 modem), 20Km A type

FIB1-T1R-SC20BF – T1 RJ45 100ohm to singlemode single strand 1550/1310nm fiber optic media converter (T1 modem), 20Km B type

The FIB1-T1R-SC20BF is a fiber media converter for G.703 T1 transmission/transport and features an RJ-48c connector for connection to 100 Ohm twisted pair wiring. FIB1-T1R-SC20BF operates on single-mode single strand fiber up to 20Km (14mi) distance.

FRM220-FTEC-CH01MAC – cross rate E1 to T1 converter w/ console mgmt and embedded AC PS

The FRM220-FTEC is a T1 (US Standard) /E1 (European Standard) converter and timeslot cross connect which enables conversion between one T1 framed D4(SF) or ESF signal and one E1 signal(CCS or CAS). Unit supports console and optional web based management.

FRM220-DS3-E3-CH01MAC – coax E3 / DS3 over fiber (SFP slot)media converter w/ console mgmt and embedded AC PS

FRM220-DS3-E3 can transport an E3 or DS3 electrical BNC coax format signal over fiber. Unit is equipped with an SFP 155M rate optical slot for transceiver flexibility and dual BNC copper interface. Unit supports console based management.

FRM220-E1-T1-SFP – E1 / T1 to SFP slot fiber media converter w/ web and console based management support

FRM220-E1-T1-SFP is a very powerful E1 120ohms or T1 100ohms fiber media converter (E1/T1 extender), equipped with an SFP 155M rate optical slot for transceiver flexibility and an RJ48c TP copper interface. Unit supports in-band and web based management.

FRM220-E1-T1-SC002 – E1 / T1 to multi-mode fiber 2Km, 1310nm media converter w/ web and console based management support

FRM220-E1-T1-SC002 is a very powerful E1 120ohms or T1 100ohms fiber media converter (E1/T1 extender), equipped with SC multi-mode 1310nm, 2Km range transceiver and an RJ48c TP copper interface. Unit supports in-band and web based management.

FRM220-E1-T1-ST002 – E1 / T1 to multi-mode ST connector fiber 2Km, 1310nm managed media converter

FRM220-E1-T1-ST002 is a very powerful E1 120ohms or T1 100ohms fiber media converter (E1/T1 extender), equipped with ST multi-mode 1310nm, 2Km range transceiver and an RJ48c TP copper interface. Unit supports in-band and web based management.

FRM220-E1-T1R-SC02A – T1 RJ45 100ohm (and E1 120ohm) to single strand BiDi Tx:850nm/Rx:1310nm multi-mode fiber media converter (T1 modem), 2Km

The FRM220-E1T1R-SC02A is a BiDi fiber media converter for G.703, RJ-48c twisted pair wiring, T1 or E1 (DIP sw selectable) transmission/transport over single strand multi-mode fiber up to 2Km, using WDM fiber technology with Tx:850/Rx:1310nm.

FRM220-E1-T1R-SC02B – T1 RJ45 100ohm (and E1 120ohm) to single strand BiDi Tx:1310nm/Rx:850nm fiber media converter (T1 modem), 2Km

The FRM220-E1T1R-SC02B is a BiDi fiber media converter for G.703, RJ-48c twisted pair wiring, T1 or E1 (DIP sw selectable) transmission/transport over single strand multi-mode fiber up to 2Km, using WDM fiber technology with Tx:850/Rx:1310nm.

FRM220-E1-T1-SC015 – E1 / T1 to single-mode fiber 15Km, 1310nm media converter w/ web and console based management support

FRM220-E1-T1-SC015 is a very powerful E1 120ohms or T1 100ohms fiber media converter (E1/T1 extender), equipped with SC single-mode 1310nm, 15Km range transceiver and an RJ48c TP copper interface. Unit supports in-band and web based management.

FRM220-E1-T1-ST015 – E1 / T1 to single-mode ST connector fiber 15Km, 1310nm managed media converter

FRM220-E1-T1-ST015 is a very powerful E1 120ohms or T1 100ohms fiber media converter (E1/T1 extender), equipped with ST single-mode 1310nm, 15Km range transceiver and an RJ48c TP copper interface. Unit supports in-band and web based management.

FRM220-E1-T1R-SC050 – T1 RJ45 100ohm (and E1 120ohm) to single-mode 1310nm fiber optic media converter (T1 modem), 50Km

The FRM220-E1T1R-SC050 is a fiber media converter for G.703 T1 or E1 (DIP sw selectable)transmission/transport and features an RJ-48c connector for connection to 100 Ohm twisted pair wiring. Unit operates on single-mode fiber up to 50Km (30mi) distance.

FRM220-E1-T1R-SC20A – T1 RJ45 100ohm (and E1 120ohm) to single strand BiDi Tx:1310nm/Rx:1550nm fiber media converter (T1 modem), 20Km

The FRM220-E1T1R-SC20A is a BiDi fiber media converter for G.703, RJ-48c twisted pair wiring, T1 or E1 (DIP sw selectable) transmission/transport over single strand fiber up to 20Km, using WDM fiber technology with Tx:1310/Rx:1550nm.

FRM220-E1-T1R-SC20B – T1 RJ45 100ohm (and E1 120ohm) to single strand BiDi Tx:1550nm/Rx:1310nm fiber media converter (T1 modem), 20Km

The FRM220-E1T1R-SC20B is a BiDi fiber media converter for G.703, RJ-48c twisted pair wiring, T1 or E1 (DIP sw selectable) transmission/transport over single strand fiber up to 20Km, using WDM fiber technology with Tx:1550/Rx:1310nm.

DC-APT-12V – DC 20-72V input isolated power supply for FRM220, FIB1 and FMC series converters

The DC-APT-12V is a switching 20-70V DC input isolated power supply for the standalone media converters from FRM220, FIB1 or FMC series. The adapter allows installation into DC48V or DC24V telecom power regulated spaces, delivering 10W of power.

FRM220-FOM01-AC – one E1/ T1 with full Fast Ethernet, SFP slot uplink Fiber Optic Multiplexer – AC power

The FRM220-FOM01-AC model is bundling one E1 or T1 interface together with a full Fast Ethernet 100Mbps duplex channel. A fiber SFP slot is available for optical link. AC 90-240V power supply and serial console are built-in. DC48V option is available.

FRM220-FOM04-AD – 4E1/ T1 with full Fast Ethernet and redundant SFP optic link Fiber Optic Multiplexer – AC and DC powered

The FRM220-FOM04-AD model is bundling 4 E1 or T1 interfaces together with a full Fast Ethernet 100Mbps duplex channel and orderwire port. Two fiber SFP slots for optical main and redundant link are available. AC & DC redundant power supplies are built-in.

FRM220-GFOM04-AD – 4E1/ T1 with full Gigabit Ethernet and redundant SFP optic link Fiber Optic Multiplexer – AC and DC powered

The FRM220-GFOM04-AD model is bundling 4 E1 / T1 interfaces together with a full Gigabit Ethernet 1000Mbps duplex channel and order-wire port. Two fiber SFP slots for optical main and redundant link and AC & DC redundant power supplies are available.

ACUS-12V – AC 90-240V input power adapter for FRM220, FIB1 and FMC series converters

The ACUS-12V is a switching 90-240V AC input power adapter for the standalone media converters from FRM220, FIB1 or FMC series. The adapter provides DC12V/1A through standard power jack, delivering 12W of power. It can also be used for the IC converters.

ACEU-12V – AC 90-240V input power adapter for FRM220, FIB1 and FMC series converters, EU 220V round pin

The ACEU-12V is a switching 90-240V AC input power adapter for the standalone media converters from FRM220, FIB1 or FMC series. The adapter provides DC12V/1A and has EU 220V two round pin AC plug. It can also be used for the IC converters.
