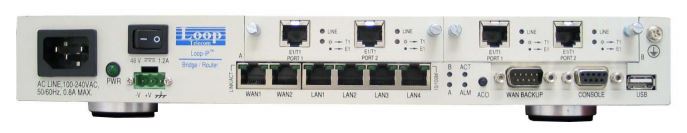

The IP6510-LN Multiple WAN Edge Router has IPv4/IPv6 dual stack functionality and Level 3 Routing in a single unified device. It is suitable for large deployments that require only moderate bandwidth and a small port density but a very competitive CapEx. The LN stands for Linux, which backs up the Loop-OS architecture inside the IP6510-LN. The new Loop-OS includes many advanced features with more functionality to help you improve your network.
These features inside the Loop-OS include IPv4/IPv6 dual stack routing capability, software bridging*, serial-to-IP/UDP terminal services*, and network security features. With RIPng, OSPFv3 and BGP, the IP6510-LN is able to build a reliable IPv6 routed network.
All WAN ports and LAN ports can easily be configured as bridged ports*, routed ports, or combinations of both. WAN interfaces include Ethernet, E1/T1 and Serial RS232/RS485 to provide flexibility for any access network.
Using the IPSec and VPN capabilities included in the Loop-OS software suite allows a highly secure and reliable connection over an IP-based network to any location.
Ethernet WAN Interface
Two built-in 10/100BaseT Ethernet ports (WAN1 and WAN2)
Speed auto-sensing
Half / full duplex auto-negotiation
Auto MDI/MDI-X crossover
WAN Plug-in Modules
E1 card: 2 ports per card, up to 4 ports per system
T1 card: 2 ports per card, up to 4 ports per system
Electrical Ethernet card: 1 port per card, up to 2 ports per system
Optical Ethernet card: 1 port per card, up to 2 ports per system

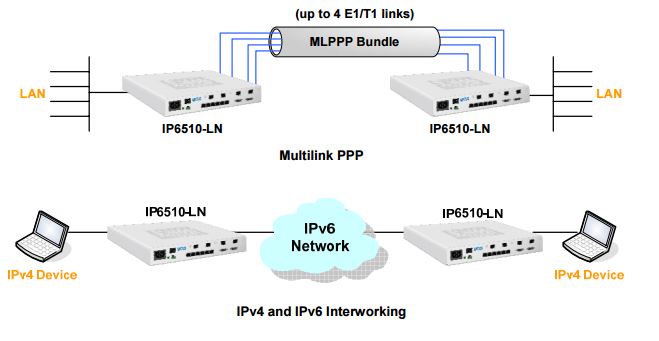

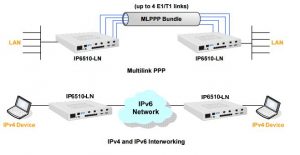

Layer 2 E1/T1 WAN protocols: PPP, MLPPP, HDLC, Cisco compatible HDLC
E1 Line Interface
Line Rate 2.048 Mbps ± 50 ppm
Line Code HDB3
Output Signal ITU G.703
Connector RJ48C
Loopbacks Line Loopback, Payload Loopback
Test Pattern 20-bit QRSS, 3-in-24, 1-in-8, 2-in-8, 1:1
T1 Line Interface
Line Rate 1.544 Mbps ± 50 bps
Line Code AMI or B8ZS
Output Signal DS1
Connector RJ48C
Loopbacks Line Loopback, Payload Loopback
Test Pattern 20-bit QRSS, 3-in-24, 1-in-8, 2-in-8, 1:1
SFP Optical Ethernet WAN Interface
Speed 100 Base-FX
Full Duplex Mode Supported
Automatic Laser Shut Down Supported
Switch L2 Switch not supported
Temperature Range -20C to +65C
TDM WAN Interface
One WAN per Fractional E1/T1 port, Up to 4 WANs per system
Configurable Nx64K per WAN.
Multiple WAN per Fractional E1/T1 port, up to 64 WANs per system
LAN Interface
Four 10/100BaseT interfaces
Speed auto-sensing
Half / full duplex auto-negotiation
Auto MDI/MDI-X crossover
Management and Administration
Console Port Electrical: RS232
CLI management via console port
Remote Login Telnet, SSH
SNMP SNMP v1, v2 and v3
Diagnostics Ping, Traceroute, Loopback
Router
Supports IPv4 and IPv6
Routing protocol: RIP v1, RIP v2, RIPng, OSPF v2, OSPF v3, and BGP4
Multicast Protocol: IGMP, MLD*, IPv4 PIM-SM/DM, IPv6 PIM-SM/DM*
VLAN routing
L2 Protocol: PPP, MLPPP, Cisco HDLC, Raw HDLC
Address Translation
NAT / NAPT
Static address table for NAT
Port forwarding table for NAPT (Virtual Service)
DHCP
DHCP server support for LAN users (RFC 2131, RFC 2132)
BOOTP compatible
DHCP relay
DHCP client
Access Control & Firewall
Packet filtering based on
z Source/destination IP address
z Protocol types (ICMP, TCP, UDP)
z Source/destination port number (UDP or TCP)
QoS
QoS based on rate limit
Classification based on
z Source/destination IP address
z Protocol types (ICMP, TCP, UDP)
z Source/destination port number (UDP or TCP)
IPSec VPN
Encryption DES, 3DES, AES
Authentication MD5, SHA-1
Key Management Manual Key, IKEv2
Tunnels Up to 64 concurrent tunnels per interface
